Un-Armored Cables

Un-Armored Cables

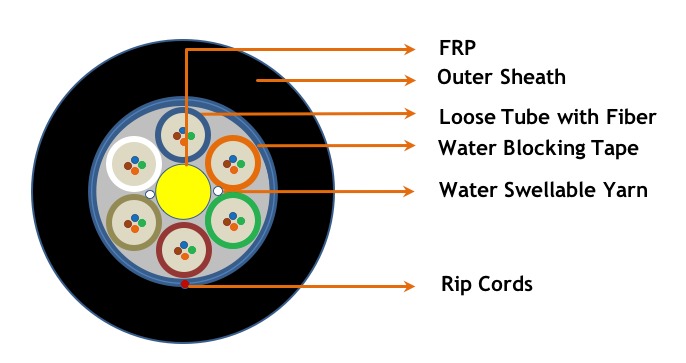

Construction Details

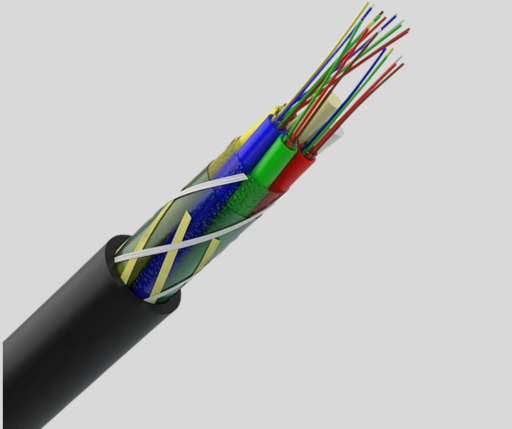

Un-armored Multi-tube cable with a Single Jacket is suitable for duct applications. This cable is a stranded Loose tube cable with Optic fibers are placed inside the robust buffer tube. Stranded around the fiber-reinforced plastic (FRP) central strength member. Loose tubes contain water blocking jelly and cable core surrounded with water blocking tape to prevent water ingress in the interstices of the cable core. The cable core is surrounded by HDPE/LSZH jacket.

Application

These cables are typically used for Outside plant applications, including duct and lashed aerial in harsh environments. They can be installed in Ducts with either pulling, trenching or blowing technics.

Features
  • Tensile and crush resistance.
  • Minimize the fiber strain due to reversal oscillating (SZ) stranding.
  • Multiple designs with ripcords with easy and quick mid span access.
  • Flexible, Light weight, easy to handle & install.
  • Water Blocking technology for gel free core helps in the quicker and preparations.
  • UV Protected.
  • Tightly controlled Physical Parameters.
  • Combinations of all types if fibers are available on request.

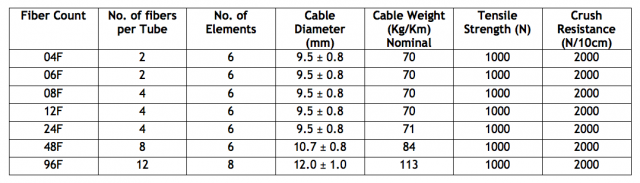

Specifications
  • Environmental Specifications
  • Product Options
  • Ordering Code
  • Standards Compliant

Operation and Storage: -40ºC to +70ºC
Installation: -20ºC to +70ºC

  • Available with all kinds of Single Mode and Multimode Fibres.
  • Length Option of 2.0, 4.0 Km.
  • XXX = OS1, OS2, OM1, OM2, OM3, OM4 (Type of Fiber)
  • YYY = 04F, 06F, 08F, 12F, 24F, 48F & 96F (No. of Fibers)
  • KM = Length in Kilo Meters (Example: 20 for 2 Kilo Meters)
  • ITU-T
  • IEC 60793 & 60794
  • Telcordia GR-20
  • EIA/TIA

BENEFITS

Facilitate Deep Fiberization

Reduce cost of Network build out

Suitable for both P2P and P2PMP networks

Faster Network Roll-Out
