Armoured Cables
Armoured Cables

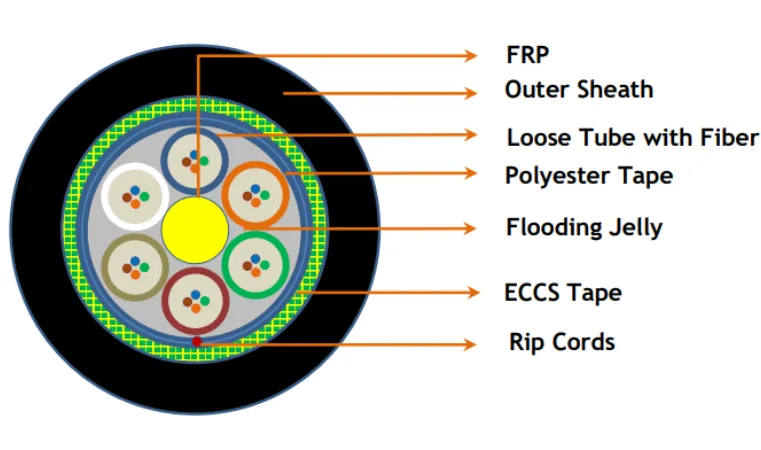

Construction Details

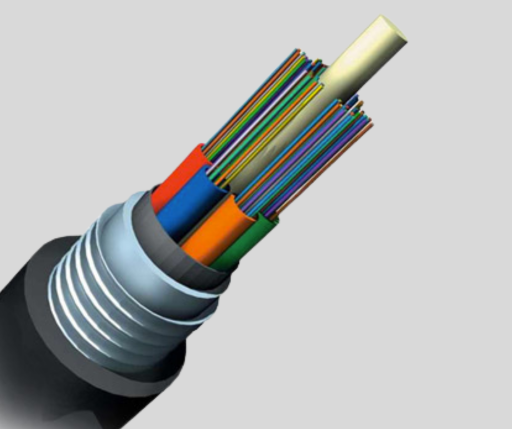

Armoured Multitube cable with Single Jacket Steel Tape Armoured cables are suitable for direct burial as well as for duct applications. This cable is stranded Loose tube cable with Optic fibres are placed inside the robust buffer tube. Stranded around the fibre reinforced plastic (FRP) central strength member. Loose tubes contain water blocking jellyand cable core flooded with jelly and core surrounds with Polyester tape to prevent water ingress in the interstices of cable core. Corrugated steel tape armour surrounds the cable core with HDPE/LSZH jacket.
Application
These cables are typically used for Outside plant applications, including duct, direct, and lashed aerial in harsh environments.
Features
- Steel tape armored and PE jacket provides rodent protections.
- Tensile and crush resistance.
- Multiple designs with ripcords with easy and quick mid-span access.
- Flexible, Light weight, easy to handle & install.
- UV Protected.
- Tightly controlled Physical Parameters.
- Combinations of all types of fibers are available on request.

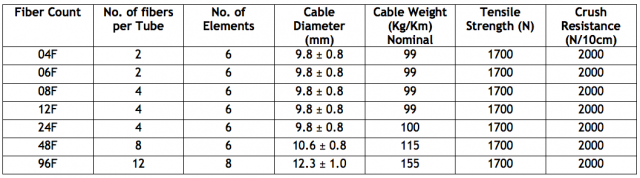

Specifications
Operation and Storage: -40ºC to +70ºC
Installation: -20ºC to +70ºC
- Available with all kinds of Single Mode and Multimode Fibres.
- Length Option of 2.0, 4.0 Km.
- XXX = OS1, OS2, OM1, OM2, OM3, OM4 (Type of Fiber)
- YYY = 04F, 06F, 08F, 12F, 24F, 48F & 96F (No. of Fibers)
- KM = Length in Kilo Meters (Example: 20 for 2 Kilo Meters)
- ITU-T
- IEC 60793 & 60794
- Telcordia GR-20
- EIA/TIA
