Tight Buffered Cables
Tight Buffered Cables

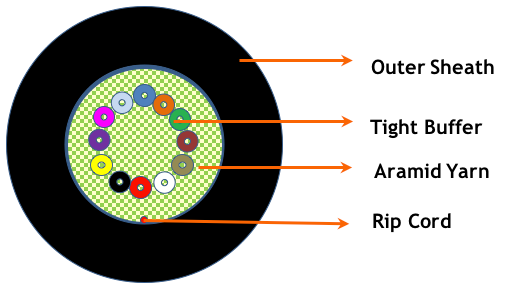

Construction Details

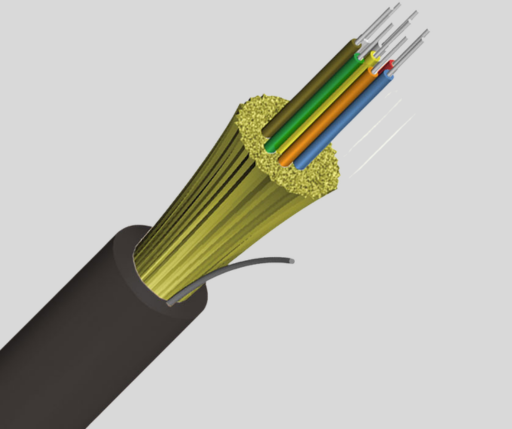

Tight buffered Riser cables are an integral part of end-to-end fiber optic solutions. Tight buffered Fibre is reinforced with aramid yarns and sheathed with Low Smoke Zero Halogen (LSZH). The cable is suitable for both Indoor and Outdoor Applications with the standard commercial types of connectors.
Application
These cables are specially designed for Indoor/Outdoor applications, mainly used in the Ultra building backbone, routing between telecommunications rooms, and as riser cable in multi-levels of buildings.
Features
- 900µm Tight Buffered fibers support fast field installations.
- Reduce Installation Time & Cost
- Easy Jacket removal standard tools.
- Flexible and Fire Retardant Outer sheath with aramid yarns as Tensile Elements helps in easy installation in space-constrained areas.
- Small cable diameter and Light weight.
- LSZH sheath makes the cable suitable for higher fire safety requirements.
Specifications
Operation and Storage: -40ºC to +70ºC
Installation: : -20ºC to +70ºC
- Available with all kinds of Single Mode and Multimode Fibres.
- Length Option of 1.0, 2.0, 4.0 Km.
- XXX = OS1, OS2, OM1, OM2, OM3, OM4 (Type of Fiber)
- YYY = 04F, 06F, 12F (No. of Fibers)
- KM = Length in Kilo Meters (Example: 20 for 2 Kilo Meters)
- ITU-T
- IEC 60793 & 60794
- Telcordia GR-20
- EIA/TIA
