Micro Duct Cables
Micro Duct Cables

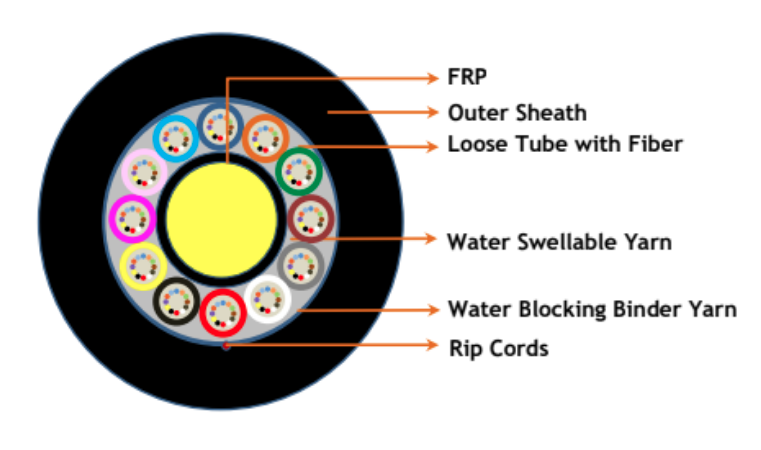

Construction Details

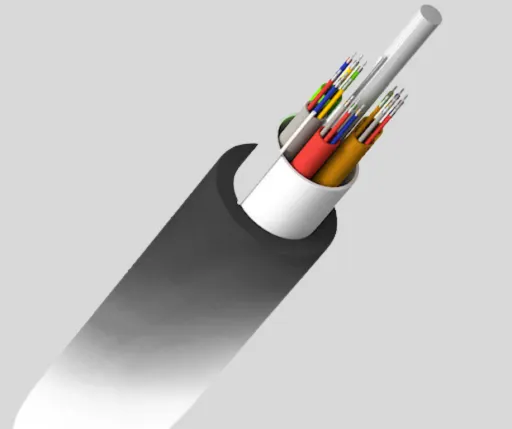

Micro Duct cables are small in Diameter suitable for duct applications. This cable is a stranded Loose tube cable with Optic fibers are placed inside the robust buffer tube. Stranded around the fiber-reinforced plastic (FRP) central strength member with water-swellable thread and Binder yarns. The cable core is surrounded by HDPE/Nylon jacket with ripcords.
Application
These cables are typically used for Access / Metro and (Air Blown) Drop Cabling for FTTx Networks. Micro cables can utilize existing and new duct systems more effectively by accommodating more fibers in a given subduct network.
Features
- As Compared to Conventional cables micro cable diameter is less thereby reducing installation costs.
- Maximize large duct and rights of way utilization.
- Reduce size and weight aid transportation, handling, and blowing distance.
- Flexible, Lightweight, easy to handle & install.
- Water Blocking technology for gel-free core helps in the quicker preparations.
- UV Protected.
- Tightly controlled Physical Parameters.
- Combinations of all types of fibers are available on request.

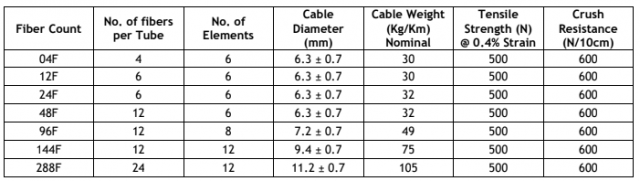

Specifications
Operation and Storage: -40ºC to +70ºC
Installation: -20ºC to +70ºC
- Available with all kinds of Single Mode and Multimode Fibres.
- Length Option of 2.0, 4.0 Km.
- XXX = OS1, OS2, OM1, OM2, OM3, OM4 (Type of Fiber)
- YYY = 04F, 12F, 24F, 48F, 96F, 144F & 288F (No. of Fibers)
- KM = Length in Kilo Meters (Example: 20 for 2 Kilo Meters)
- ITU-T
- IEC 60793 & 60794
- Telcordia GR-20
- EIA/TIA
